Half umbrella
The half umbrella, Meissl’s exclusive new development, offers a very attractive solution for small patios and balconies, but also works well for a solid connection to the building if there are no other mounting options on the façade. The usual stability and security for tough demands and extreme weather conditions are just as important as the numerous sizes and design versions. An ideal example of use is presented with the roof patio of the splendid Crowne Plaza in Salzburg: on the 6th floor of the fully renovated magnificent building are 17 umbrellas, with 15 of these elegant half umbrellas.
Technical details
2 umbrella types MV 5.7 x 3.7 m
10-piece, covered area: 21.5 m²
1 umbrella type M 2.4 x 2.2 m
8-piece, covered area: 5.2 m²
1 umbrella type M 2.4 x 2.2 m
8-piece, covered area: 5.2 m²
9 umbrella types MV half umbrella 4.0 x 2.4 m
6-piece, covered area: 9.6 m²
1 umbrella type MV half umbrella 3.1 x 2.4 m
6-piece, covered area: 7.4 m²
3 umbrella types MV half umbrella 4.2 x 2.0 m
4-piece, covered area: 7.9 m²
2 umbrella types MV half umbrella 4.0 x 2.1 m
4-piece, covered area: 8.6 m²
Ground mounting by means of a flat roof flange, screwed into the supporting structure in cooperation with local builders.
Umbrella combination with recessed circle segment

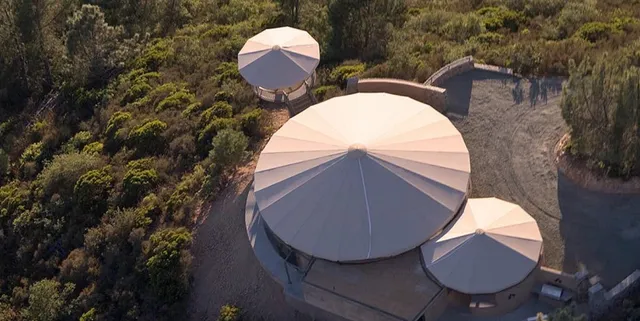

Two round large umbrellas that directly connect to each other always make for an unusual engineering challenge because problem-free function of opening and closing naturally has to be ensured for both umbrellas, as does a flush-mounted, rainproof connection. A particularly charming version was created for an exclusive winery in sunny California. For this, a large umbrella and a smaller model were combined – solution that gives an impressive overall appearance, not only from the air.
Technical details
1 umbrella type MR Ø 15 m
Covered area: 175 m²
1 umbrella type MR Ø 8 m
(Special format adapted to umbrella type MR Ø 15 m)
Covered area: 50.3 m²
1 umbrella type MR Ø 6.2
Covered area: 30.2 m²

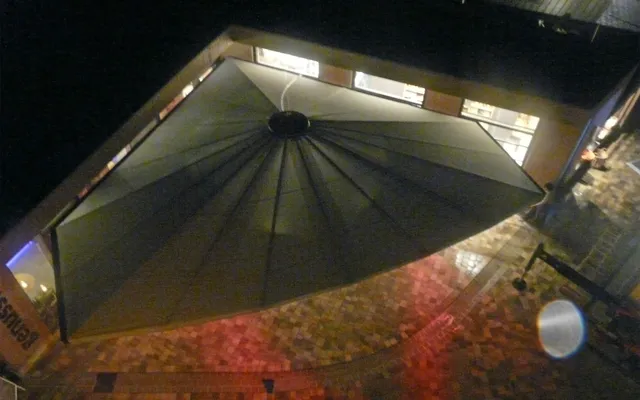

Umbrella with polygon layout
Sometimes things are a bit more complicated. For optimum use in certain locations and sites and to also clearly stand out from the competition, large umbrellas are necessary that have a polygonal, asymmetrical shape. This is no problem for Meissl because even when it comes to complex tasks we have the experience and the technology for the related implementation. Stability and reliable function are naturally part of such constructions. You can find evidence of this “live” at various locations.
Technical details
Umbrella type MR 10.1 x 9.52 m
Special format 19-piece
Covered area: 74.0 m²
Ground mounting by means of a base frame, which also accommodates the wall elements
Umbrella with open layout
Large umbrellas with covers that do not match the usual round, square or rectangular shapes, are captivating in their appearance and often form the best option for certain structural requirements. Of course, the amorphous umbrella design requires special structural solutions and more complex technology, since in these cases tensile forces and stress are acting in an extraordinary way. Meissl specialists meet the challenges, as evidenced by umbrella setups from Portugal to Turkey!!
Technical details
Umbrella type MR 15.0 x 12.58 m
Special format 22-piece
Covered area: 156.4 m²
Ground mounting by means of a flat roof flange
Umbrella size for precise structural fit
Umbrellas with direct connections to existing buildings or specific layouts usually require unusual sizes. Not infrequently, necessary deviations from normal dimensions are hardly noticeable and often it comes down to only a few degrees from a right angle. The already provided special dimensions provide reliable function and, ultimately, the custom-fit connections prevent moisture or air draughts from entering. Thus, it is still a matter of all-round protection in any weather. And so, Meissl developed polygonal large umbrellas that when open fit exactly into the given space situation – with continuous operation, at any location and in any weather!!
Technical details
Umbrella type MR 9.6 x 9.6 m
Special format 18-piece
Covered area: 64.0 m²
Ground mounting by means of a flat roof flange
Umbrella with polygon layout and customized tilt angle
Nothing is impossible! Meissl professionals love to be challenged by seemingly impossible tasks. And they also convincingly achieve such tasks. When powerful forces that impact the frame structure and the fabric are taken into account for a specific size, then this interaction naturally increases, depending on how complex the design task is. After all, problem-free continuous operation must be ensured in every weather condition. The fact that the fully functional polygonal large umbrella can be easily operated and also looks quite “normal” is part of our skill and ambition.
Technical details
Umbrella type MR 11.1 x 9.0 m
Special format 20-piece
Covered area: 83.7 m²
Ground mounting by means of a flat roof flange
When opened, the top rungs are 9.070 – 4.560 mm for adaptation to local conditions (building gable)
